ingress-nginx Annotation Compatibility Matrix

Part 2 built the inventory. This part answers the question that inventory exists to feed: for the annotations that actually turn out to be hard cases — not every annotation, but the ones where the answer isn’t obvious — does migration go cleanly, or does it silently break? The honest answer changes row by row — and, in one case in this matrix, changes depending on the value of the annotation, not just its name.

Why classify by behaviour, not by name🔗

rewrite-target is the cleanest illustration of why this matrix exists at all. A simple prefix or full-path rewrite maps directly onto Gateway API’s core URLRewrite filter — confirmed straight from the Gateway API source (apis/v1/httproute_types.go), the HTTPPathModifierType enum is exactly ReplaceFullPath and ReplacePrefixMatch. Nothing else. The moment rewrite-target uses a regex capture group — rewrite-target: /$1 paired with a regex path — there is no equivalent in core Gateway API at all. Same annotation. Opposite verdict. An inventory that only records the annotation’s name, not the value actually in use, would misclassify half of these.

There’s a third twist worth naming here too: F5’s own NGINX Ingress Controller uses the identical annotation name, nginx.org/rewrite-target, and — confirmed from its VirtualServerRoute CRD docs — its rewritePath field explicitly supports capture groups ($1 through $9). Migrating the regex case to the same vendor’s own controller carries the capability over natively; migrating it to core Gateway API does not. Same annotation, same name even, and the verdict still depends on where you’re going, not just what value you’re using. Kong’s own konghq.com/rewrite Ingress annotation carries the same capability over too — confirmed from source, it parses $1/$2 capture syntax into Kong’s own template format. HAProxy’s own Kubernetes Ingress Controller carries it over too, through a third mechanism again — confirmed from source, its path-rewrite annotation takes a match regex and a replacement format string (pkg/annotations/ingress/reqPathRewrite.go), compiled straight into HAProxy’s own native replace-path directive (MatchRegex/ReplaceFmt fields, client-native/configuration/http_request_rule.go) — the same regex-substitution mechanism HAProxy uses outside Kubernetes entirely. Traefik carries it over from a fourth direction — twice, in fact: its own ingress-nginx-compat provider auto-translates the annotation directly into a purpose-built dynamic.RewriteTarget type (with automatic X-Forwarded-Prefix handling the other three don’t offer), and separately its classic Middleware CRD has a ReplacePathRegex field with real capture-group support, confirmed from source — unlike F5’s, Kong’s, and HAProxy’s Ingress-only answers, that CRD field is reachable from both the classic path and HTTPRoute (via the same generic ExtensionRef bridge covered below). So this bifurcation isn’t unique to NGINX: any target that answers rewrite-target via its own CRD/annotation on its own data plane tends to carry regex over, while every target that speaks only core Gateway API URLRewrite does not.

The classification scheme🔗

Each row in the matrix gets an overall, annotation-level risk (Green / Yellow / Red) in the CSV, describing how dangerous or complex the annotation itself is to migrate, independent of any specific target — plus an unverified state for cases that couldn’t be confirmed from a primary source, rather than a guess dressed up as an answer. A full re-verification pass against every target’s own source resolved every cell that still carried that label from earlier drafts of this matrix — none of the 17 rows below need it right now — but the state stays in the scheme as the matrix grows past 17.

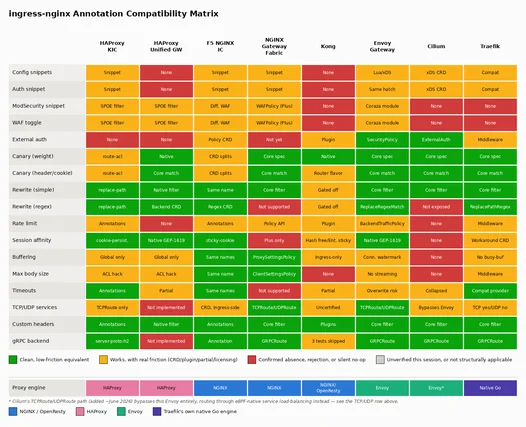

The grid below is a different, finer-grained view: not the annotation-level risk above, but a per-target verdict — for each of the eight targets, does that specific controller carry this annotation’s behaviour over cleanly? Green is a clean, low-friction equivalent; yellow is a real path with real friction (a CRD or plugin instead of a plain annotation, partial support, a licensing gate); red is a confirmed absence, rejection, or silent no-op; gray is reserved for unverified or structurally-not-applicable cells — none appear in the grid below right now. Every cell traces back to a specific finding in the sections and the CSV below — this is a summary, not a separate research pass. The last row is a different question and deliberately breaks the color pattern: not “does this migrate cleanly” but “which process actually proxies the traffic” — there’s no good/bad answer to that one, just an identity, so it uses its own categorical colors instead of the risk palette above it.

Two migration paths, eight targets🔗

The matrix now evaluates eight targets, and they don’t all represent the same kind of move. Part 1 named two separate paths — “switch to another Ingress controller” and “move to Gateway API” — and most targets split cleanly across that line:

• Switch to another Ingress controller (same object model; existing Ingress resources mostly keep working, usually with annotation-name changes): the HAProxy Kubernetes Ingress Controller, and F5’s own NGINX Ingress Controller (nginx/kubernetes-ingress). That name needs unpacking: it is neither the retired ingress-nginx this whole series is about, nor nginx-gateway-fabric two paragraphs from here — three separate NGINX-adjacent projects, easy to conflate, worth being precise about.
• Move to Gateway API (a different object model — HTTPRoute/GRPCRoute/etc. replace Ingress entirely): Envoy Gateway, NGINX Gateway Fabric, and HAProxy’s own HAProxy Unified Gateway (haproxytech/haproxy-unified-gateway, “HUG”). Confirmed directly from Envoy Gateway’s own source: it contains no reference anywhere to the networking.k8s.io/v1 Ingress types, and its own README describes it as managing “Envoy Proxy as a standalone or Kubernetes-based application gateway” — not as an Ingress controller. Evaluating it in this matrix is correct precisely because it isn’t one: it’s the reference implementation for the Gateway API path Part 1 already named as a legitimate option on its own. HUG is the same story from HAProxy’s side: a genuinely separate project from the haproxy column above it, built against Gateway API only (its own README says Ingress-API support is “coming next year”), confirmed from source.

Three targets don’t split cleanly at all, though: Cilium, Traefik, and Kong’s Kubernetes Ingress Controller (kong/kubernetes-ingress-controller) support the classic Ingress API and Gateway API side by side — either, depending on configuration. They get there by three different architectures, all confirmed from source. Kong is the most tightly integrated: one single codebase and binary runs the Ingress reconcilers (internal/controllers/configuration/) and the Gateway API reconcilers (internal/controllers/gateway/) next to each other, independently toggle-able by CLI flag. Cilium’s Ingress and Gateway API ingestion code are genuinely separate entry points, but they converge into one shared model.Model before either ever reaches Envoy — everything from that shared model onward (cluster/listener/route-configuration generation) is one code path, not two paths that merely produce compatible output. Traefik keeps the two furthest apart: its classic provider (pkg/provider/kubernetes/crd/) and its Gateway API provider (pkg/provider/kubernetes/gateway/) are separate packages with separate reconcilers, bridged only by a generic ExtensionRef→kind: Middleware registry — every Middleware capability (auth, rate limiting, buffering, regex rewrite) reaches HTTPRoute through that one bridge, not per-feature glue code.

Kong earns its spot in this matrix for a different reason than F5’s or HAProxy’s additions below: it’s one of the officially supported providers listed in kubernetes-sigs/ingress2gateway — the same upstream signal this series already treats as a legitimacy bar for a target being worth evaluating at all, confirmed by cloning that repo directly (pkg/i2gw/providers/kong/) rather than trusting its README’s provider list at face value.

Two vendors now show up on both sides of that Ingress-vs-Gateway-API line at once, in two entirely separate codebases: NGINX has an Ingress controller and a Gateway API implementation, and so does HAProxy. Kong’s shape is different again — one codebase answering both APIs. Worth checking not just which column a vendor’s name lands in, but which of these three shapes it takes, before assuming what “migrating to X” actually involves.

There’s a fourth path this matrix hadn’t accounted for either, and it belongs to Traefik alone: consume the existing nginx.ingress.kubernetes.io/*-annotated Ingress objects directly, without switching object model at all. Confirmed from source (pkg/provider/kubernetes/ingress-nginx/): Traefik ships a dedicated compatibility provider that parses ingress-nginx’s own annotations — including, for server-snippet/configuration-snippet, a real nginx-config parser that re-executes a bounded allow-list of directives (set, rewrite, proxy_set_header, add_header, and about a dozen others; anything outside that list is a hard build-time failure, not a silent pass-through). No other target researched in this series has anything comparable — every other target’s answer to “what happens to my existing Ingress objects” is “translate them,” not “run them as-is.” Worth treating as its own migration path in a future part, not folding into “switch Ingress controller” — the whole point of that path elsewhere in this series is annotation-name changes; this path is annotation compatibility.

This matters because the migration effort is not the same shape across the two paths — switching Ingress controllers can often keep your existing Ingress objects with just annotation-name changes; moving to Gateway API means re-modeling routing as new object types from scratch. The per-row findings below hold regardless of category, but worth keeping in mind when a cell says “supported.”

F5’s own NGINX Ingress Controller earns a specific callout on the fairness point: it runs the same underlying NGINX data plane as the retired ingress-nginx, and several of its annotations are close to identical — nginx.org/rewrite-target, nginx.org/proxy-read-timeout, nginx.org/client-max-body-size, just under a different prefix than nginx.ingress.kubernetes.io/. Of every target researched in this series so far, it’s the one most likely to be the lowest-effort migration for a given annotation — not because it’s “the best” target in the abstract, but because it shares the most heritage with what you’re migrating away from.

HUG earns the same kind of callout for the opposite reason: it’s the least-effort answer to recreate, not the least effort to reach. It’s a young project — its own conformance testing declares only SupportGateway, SupportHTTPRoute, and SupportReferenceGrant, and this session’s source review found several core-spec gaps consistent with that (no GRPCRoute/TCPRoute/UDPRoute reconciliation yet, a partially-implemented Timeouts field, no rate-limit or external-auth mechanism at all). What it does implement, it implements natively against the Gateway API spec itself rather than through a custom Policy CRD layered on top — most visible in session affinity, below. Evaluating it here isn’t an endorsement of maturity; it’s the same fairness argument as F5’s column: if one vendor’s Gateway API implementation is in the matrix, the other vendor’s should be too, immature or not.

Kong’s standout finding is architectural rather than a single feature: across nearly every hard case below — rate limiting, external auth, WAF, canary via a dedicated plugin — Kong’s own Kubernetes Ingress Controller has no dedicated code path of its own for the feature. Instead, almost everything funnels through one generic bridge, confirmed from source: the konghq.com/plugins annotation on Ingress, and the equivalent ExtensionRef filter pointing at a KongPlugin CRD on HTTPRoute, both attaching the same underlying plugin object regardless of which API you’re routing through. That’s a genuinely different shape from every other target in this matrix, where “does X exist” usually means “is there a dedicated CRD/annotation/filter for X.” For Kong, the more useful question is almost always “does a Kong Gateway plugin exist for X” — and that answer lives outside this controller’s own repository, in Kong Gateway itself.

The following tables compare a selection of ingress-nginx features and make no claim to completeness.

Snippet annotations: still the clearest “no”🔗

configuration-snippet, server-snippet, stream-snippet, and auth-snippet inject raw NGINX configuration directly. Every one of them is rated Critical in ingress-nginx’s own annotation risk table — this isn’t just a migration problem, it’s already the project’s own top operational risk category. None of the eight targets researched here has a portable equivalent, by design:

What each target actually offers instead is informative, though, because none of it is “no equivalent, full stop” — it’s “no portable equivalent, but here’s the escape hatch, and here’s what it costs”:

The Lua RCE and the raw-xDS escape hatches carry real risk, same class as nginx snippets. HAProxy Unified Gateway is the one structural inverse: no snippet mechanism at all, at the cost of no way to reach outside the schema either. Traefik is the standout, though: it ships a dedicated ingress-nginx-annotation compatibility provider (pkg/provider/kubernetes/ingress-nginx/, confirmed from source) that directly parses server-snippet/configuration-snippet text with a real nginx-config parser — genuinely bounded, not a like-for-like carryover: any directive outside a fixed allow-list of about 16 (set, rewrite, proxy_set_header, add_header, and a handful more) fails the build outright rather than silently passing through. Separately, Traefik’s own Yaegi plugin system does interpret real Go code — including syscall/unsafe — in-process, a genuine arbitrary-code-execution surface, but plugins are operator-installed via static config, not something a tenant can inject through an Ingress annotation the way an nginx snippet is. Worth noting separately: Traefik runs its own Go-native proxy core, not NGINX — so even the parsed server-snippet/configuration-snippet text on the compat path is being translated into Traefik’s own configuration model, not passed through to an actual nginx.conf.

modsecurity-snippet gets its own row in the matrix for the same reason — it’s Critical risk on ingress-nginx too, and distinct from the WAF toggle itself (enable-modsecurity, enable-owasp-core-rules, Low risk upstream), which is a separate, if still Yellow-rated, migration question: WAF is handled by every target through its own extension mechanism, none of them carry ModSecurity rule syntax over directly.

auth-url / auth-signin: no stable answer, several mature-ish ones🔗

External auth delegation has no stable core Gateway API filter — an ExternalAuthFilter exists, but only in the experimental channel, and it’s explicitly subject to change. Confirmed directly from the Gateway API source: the core HTTPRouteFilterType enum does not include ExternalAuth; it only appears in the experimental validation enum. What each target does instead:

Two findings worth the extra sentence: Cilium’s is the only answer in this row running through the real (if still experimental) Gateway API spec field rather than a vendor-specific Policy CRD/Middleware — every other target, including Envoy Gateway’s own, layers its own CRD on top. And the HAProxy row is a corrected finding, not a first pass: an earlier version of this research attributed oauth/oauth-uri-prefix/oauth-headers annotations to haproxytech/kubernetes-ingress — those belong to a different, confusingly near-identically-named project (haproxy-ingress/haproxy-ingress). Conflating the two is an easy mistake from search results alone; cloning the actual repo is what caught it.

Canary: a genuine split inside one hard case🔗

Weight-based canary (canary, canary-weight) maps directly onto Gateway API’s core weighted backendRefs — stable since v0.5.0, one of the cleanest rows in this matrix. Header/cookie-based canary (canary-by-header, canary-by-cookie) is a different mechanism entirely: there’s no weight annotation to port, because the replacement is architectural — two separate HTTPRoute objects with header matches pointing at different backends, not one object with a routing-weight annotation. Cookie matching has no native match type in core Gateway API at all (HTTPRouteMatch supports only Path, Headers, QueryParams, and Method), which is why most Gateway-API-native targets in the table below show “no cookie match.” Two targets get there anyway, each a different way: HAProxy and F5 sidestep Gateway API entirely and use their own ACL/CRD mechanism instead (see below), while Envoy Gateway stays on Gateway API but bolts cookie matching on as its own vendor extension. Same feature category, same prompt-doc “hard case” label, genuinely different migration shape.

HAProxy and F5 both collapse weight- and match-based canary into one richer mechanism (an ACL expression, a CRD field) rather than several dedicated annotations — neither is more “portable” than the other, just shaped differently from ingress-nginx’s own several-annotation approach.

Timeouts: where the matrix earns its keep🔗

This is the sharpest finding in the batch. Gateway API’s core Timeouts field (request and backendRequest, GA since v1.2.0) looks like a clean, portable answer to proxy-connect-timeout/proxy-read-timeout/proxy-send-timeout. Whether it actually works depends entirely on the target:

The sharpest read has to be revised from an earlier pass on this same row. NGF’s rejection is still a visible failure, and HUG/Kong still split the difference — half the field silently does nothing rather than all of it. But Traefik’s core-Gateway-API silent no-op is no longer the row’s cautionary tale once the compat provider is on the table: for the actual annotations this row is about, Traefik’s real migration path works fine. Cilium and Envoy Gateway aren’t clean exceptions either — both read both fields, but neither composes them the way the spec intends. Cilium collapses them into one Envoy timeout via min() before either reaches the proxy; Envoy Gateway lets one field unconditionally overwrite the other unless a Retry block happens to be present too. No target in this matrix gives both sub-fields independent, always-honored semantics. The row’s real lesson: “the field exists and gets read” is not the same claim as “the field’s semantics survive translation” — check the translation step, not just the schema.

WebSocket: hiding inside the timeout row🔗

WebSocket gets used daily and understood rarely, which is exactly why it earns its own callout here instead of a passing mention. There is no dedicated WebSocket annotation in ingress-nginx — Upgrade/Connection headers pass through by default — so WebSocket doesn’t show up as its own row anywhere in this matrix. It hides inside the timeout group above: a WebSocket connection is a single long-lived HTTP request, and whether it survives depends entirely on whether a target enforces a long-enough value for the specific timeout field that governs it. Checking “does this target support WebSocket” is the wrong question; checking “does this target enforce the timeout value I actually set” is closer, but the table above shows even that isn’t precise enough.

Two targets turn this into a silent trap rather than a simple pass/fail. Cilium’s min(backendRequest, request) collapse means whichever of the two fields is shorter wins — set a long request for your WebSocket route and leave backendRequest at a short default, and the short value silently caps the connection, with no error anywhere. Envoy Gateway has the same practical effect through a different mechanism: set both fields without also configuring a Retry block, and backendRequest unconditionally overwrites request — the long value you tuned for WebSocket is the one that gets discarded. HAProxy Unified Gateway and Kong are more honest about the same underlying gap: request isn’t implemented at all, so there’s no ambiguity about which field to tune, only backendRequest. NGF’s outright rejection of the whole field is, perversely, the safest failure mode of the five — it fails loudly instead of quietly picking the wrong number.

Session affinity: a licensing gate hiding behind a feature-support answer🔗

affinity: cookie has no GA core Gateway API equivalent — BackendLBPolicy session persistence (GEP-1619) is experimental-channel only. Looking at implementation support:

Three things worth the extra sentence: NGF’s Plus-only gate is a product decision by the Gateway Fabric team, not something inherent to NGINX as a data plane or to Gateway API as a spec — F5’s own classic Ingress controller proves the free tier can do this fine. Kong sits in a more granular version of the same trap: “does Kong support session affinity” is yes for the hashing flavor and no for the classic sticky-cookie flavor unless you’re on the paid tier. And HAProxy Unified Gateway and Envoy Gateway both implement the real GEP-1619 field natively — two different vendors, same observation: everyone else answers this row through their own custom Policy CRD, not the spec field Gateway API actually defines for it. A straight annotation-name lookup would miss all three nuances.

Canary vs. session affinity: two different “cookie” fields🔗

Both this row and the canary-by-cookie case above use the word “cookie,” which invites treating them as the same underlying capability — they aren’t. Canary’s cookie-based routing has no core match type at all: HTTPRouteMatch only defines Path, Headers, QueryParams, and Method, so reaching it means going through a vendor extension, like Envoy Gateway’s own HTTPRouteFilter.spec.match.cookies. Session affinity’s cookie is a different field entirely, HTTPRouteRule.SessionPersistence (GEP-1619) — it lives in the core spec (experimental channel) and doesn’t route on the cookie’s value at all; it just tells the proxy to set one so a client’s next request lands back on the same backend. Same word, two unrelated fields, two unrelated levels of core-spec support — Envoy Gateway, for instance, needs its own extension for the first and implements the second natively.

TCP/UDP services: this changed under the series’ feet🔗

Gateway API’s TCPRoute/UDPRoute graduated to the Standard (GA) channel in v1.6.0 (2026-06-29) — confirmed directly from the Gateway API repository, where TCPRoute now lives in the stable apis/v1 package rather than v1alpha2. That’s newer than most existing Ingress-vs-Gateway-API comparisons account for. ingress-nginx’s tcp-services/udp-services ConfigMaps (Part 2’s Surface 2, not a per-Ingress annotation) are the source-side feature all of this maps to.

Three findings need the extra sentence. Cilium only recently started reconciling TCPRoute/ UDPRoute at all — support landed in Cilium’s own codebase around June 2026, after a long stretch where this was tracked only as an open CFP issue — and the new path deliberately routes around Envoy, materializing a plain LoadBalancer Service that Cilium’s eBPF service load-balancer consumes directly. Traffic weighting still works on this path — confirmed from source (l4HasWeights, operator/pkg/model/translation/gateway-api/ translator.go): whenever a backend carries a weight, Cilium switches the Service’s load-balancing algorithm to Maglev, which is required for its datapath to honor weights at all. The real caveat is elsewhere: only the single oldest-by-creation-timestamp route per listener is honored, everything else attached to that listener is silently dropped (see the canary section above for the same mechanism applied to weighting). The generalizable lesson: even a source-grepped answer can go stale between one research pass on a fast-moving project and the next — re-verify close to publication. HAProxy’s own docs are stale, and the reason why is bigger than a docs bug: gateway-api.md states TCPRoute-only support on Gateway API v0.5.1, and the one and only commit that ever touched that file is dated 2023-02-23. Since then, this controller’s own Gateway API code has only received maintenance-level commits — an install-detection fix, an error-message cleanup, RBAC handling — no feature growth. That timeline lines up with HAProxy’s real Gateway API investment moving into a separate, purpose-built project instead: HAProxy Unified Gateway, already covered elsewhere in this matrix, whose own README describes it as the “latest Kubernetes Gateway API” answer for HAProxy. Read together, this isn’t an abandoned feature so much as HAProxy having concluded that Gateway API needed its own implementation rather than a bolt-on to the existing Ingress controller — either way, a project’s own docs page can be stale enough to actively mislead; check the commit history, not just the page. Kong answers this on both APIs at once, a small case study in its dual-codebase architecture — functional on the Gateway API side, just not yet part of the conformance profile its own test suite exercises.

QUIC and HTTP/3: not in this matrix, and here’s why🔗

Unlike WebSocket, HTTP/3 doesn’t hide inside another row here — it’s absent because there’s genuinely nothing on the source side to migrate yet. ingress-nginx ships an nginx build with the --with-http_v3_module flag compiled in, but that’s step one of five on the project’s own roadmap (images/nginx/README.md): no ConfigMap flag, no listen ... quic directive in the server template, no opened UDP port, explicitly labelled “experimental and under development,” confirmed by zero HTTP3-related hits anywhere in internal/ingress/controller/config/config.go. No annotation, no ConfigMap key, nothing a migration could carry over — so this matrix has no row for it, the same way it has no row for any other feature that doesn’t exist.

Worth a forward-looking mention anyway, since a controller migration is also a chance to pick up capabilities ingress-nginx never had. Two targets researched in this series already support HTTP/3 natively: Envoy Gateway exposes it as a first-class HTTP3 field on ClientTrafficPolicy, and Traefik ships its own dedicated HTTP/3 entrypoint (pkg/server/server_entrypoint_tcp_http3.go) as a long-standing feature. Cilium’s Gateway API/Ingress path showed no HTTP/3 wiring anywhere in the same source areas checked for every other row in this matrix. None of this changes the row-by-row comparisons above — HTTP/3 isn’t a compatibility question when the source never had the feature — but it’s a real difference between targets if HTTP/3 is on the roadmap independently of this migration.

Two clean wins, so this doesn’t read as uniformly bad news🔗

Not everything here is yellow or red. backend-protocol: GRPC maps directly onto Gateway API’s GRPCRoute — its own dedicated, GA, core route type since v1.1.0 — arguably the single cleanest migration in this entire matrix. Custom response headers are a genuine upgrade too: ingress-nginx’s custom-headers annotation requires a referenced ConfigMap; Gateway API’s core RequestHeaderModifier/ResponseHeaderModifier filters (a Standard-channel conformance requirement) do it inline, no indirection needed.

Header modifiers are about as close to a universally-solved row as this matrix has — every target researched implements them cleanly, with no partial or missing cases. gRPC is just as clean on the Ingress side — every target has a real, working answer — and the only genuine gap is HAProxy Unified Gateway, for the same structural reason as its TCPRoute/UDPRoute absence above.

Companion repo🔗

The full 17-row CSV — now against eight targets, including rate limiting, buffering, body size, and the two clean-win rows covered only briefly above — lives in the ingress-nginx-migration-lab companion repo at matrix/ingress-nginx-annotation-migration.csv, generated from scripts/build-annotation-matrix.py rather than hand-edited (safer for a 20-column CSV). The heatmap image at the top of this part is generated the same way, from scripts/generate-matrix-heatmap.py — a visual summary of that CSV, not a separate source of truth. This is a first batch, not the full 100+ annotations ingress-nginx ships — it’s a living document that grows with later parts of this series, and the unlisted annotations aren’t a secret, just not yet researched to the same bar.

What’s next🔗

Part 4 picks candidates based on what this matrix actually found, not on feature-list marketing — which also means Part 4 doesn’t start until the categories used here are confirmed. The series hub tracks what’s published; Part 2 covers building the inventory this matrix classifies.

None of this matrix decides anything by itself, though. It tells you where an annotation migrates cleanly and where it doesn’t — the actual call between staying on ingress-nginx via a maintained fork, switching to another Ingress controller, or moving to Gateway API depends on criteria this data can’t supply: which of these rows your own Ingress objects actually depend on, how much custom-proxy-code risk is acceptable, and how the migration effort weighs against everything else competing for the same engineering time. Finding that weighting is on the reader, not on this matrix.

Sources🔗

• ingress-nginx annotations-risk.md — kubernetes/ingress-nginx (main branch)
• kubernetes/ingress-nginx — ingress-nginx (source, main branch; confirms the absence of a working HTTP/3/QUIC feature beyond a compiled-in nginx module)
• Gateway API HTTPRoute reference — gateway-api.sigs.k8s.io
• kubernetes-sigs/gateway-api — Gateway API (source, main branch; confirms core-vs-experimental field status, API version history, and Standard/Experimental channel graduation dates directly from apis/v1 and versioning.md)
• HTTP path redirects and rewrites — gateway-api.sigs.k8s.io
• Gateway API v1.6.0 release — kubernetes-sigs/gateway-api (2026-06-29)
• Envoy Gateway SecurityPolicy — gateway.envoyproxy.io
• Envoy Gateway BackendTrafficPolicy — gateway.envoyproxy.io
• EnvoyExtensionPolicy Lua RCE advisory (GHSA-xrwg-mqj6-6m22) — envoyproxy/gateway
• NGINX Gateway Fabric Gateway API compatibility — docs.nginx.com
• Traefik Kubernetes Gateway API reference — doc.traefik.io
• Traefik issue #11902 — GEP-1742 Timeouts — traefik/traefik
• Traefik issue #11243 — sticky sessions via Gateway API — traefik/traefik
• Cilium Gateway API support — docs.cilium.io
• cilium/cilium — Cilium (source, main branch; confirms the embedded/per-node Envoy architecture, the shared Ingress/Gateway API translation model, and the TCPRoute/UDPRoute reconciler added ~June 2026)
• traefik/traefik — Traefik (source, main branch @ v3.7.8+; confirms the native Go reverse-proxy engine, the generic ExtensionRef→Middleware bridge, the dedicated ingress-nginx-annotation-compatibility provider, and includes Traefik’s own checked-in Gateway API conformance report)
• haproxytech/kubernetes-ingress — HAProxy Kubernetes Ingress Controller (source, v3.2.12)
• envoyproxy/gateway — Envoy Gateway (source, confirms no Ingress API support)
• nginx/kubernetes-ingress — F5 NGINX Ingress Controller (source, v5.5.3)
• haproxytech/haproxy-unified-gateway — HAProxy Unified Gateway “HUG” (source, v1.0.5)
• kong/kubernetes-ingress-controller — Kong Kubernetes Ingress Controller (source, main branch)
• kubernetes-sigs/ingress2gateway — upstream provider list that surfaced Kong as a target worth evaluating (source, v1.2.0)
